Introduction

Chitosan (CS) is a high molecular weight polysaccharide composed of β-(1,4)-2-acetamido-2-deoxy-D-glucose and β-(1,4)-2-amino-2-deoxy-D-glucose units. It is a natural polymer, non-toxic, biodegradable, which has been found a fascinating candidate in a broad spectrum of applications such as targeted drug delivery, wound dressing, tissue and cell engineering, radiopharmaceuticals and cosmetic industries, along with unique biological properties including biocompatibility, physiological inertness, remarkable affinity to proteins, antibacterial, haemostatic, fungistatic, anti-tumoral and anticholesteremic properties [1-3]. In the form of microparticles and nanoparticles, CS has a variety of important applications. Loaded with DNA plasmids, CS nanoparticles could give rise to protective immune responses in rodents [4]. Likewise, the use of CS nanoparticles as nanomedicine and drug carriers has been extensively reported before [5-7]. For example, insulin-loaded chitosan nanoparticles could enhance intestinal absorption of insulin and increase its relative pharmacological bioavailability [8]. In enhancing gene-transfer efficiency in cells, CS nanoparticles have been proved to be valuable assets [9].

However, due to its high molecular weight and viscosity, chitosan has a low solubility (above pH 6.5) in a variety of solvents, which limit its applications, especially when functionalities such as “lipid binding” is required (nanomedicine and targeted drug delivery) [10]. To overcome this issue, a popular approach is to reduce the molecular weight of chitosan. It has been reported that low molecular weight chitosan (LWCS) shows an outstanding water solubility and biological, chemical, and physical functionality, providing that its chemical structure is not changed [11]. A common synthetic rout to obtain LWCS is enzymatic degradation of CS with hydrolytic enzymes or acidic degradation by hydrochloric acid and sulfuric acid [12,13]. Recently, LWCS was also formed by oxidative degradation with some oxidative systems [14-16]. The degradation patterns of chitosan using O₃ and NaNO₂ have been reported [14,15]. Tanioka et al. [16], and Chang et al. [17], respectively reported that Cu (II)-UV-H₂ 0₂ and H₂O₂-Fe²⁺ systems could decrease the molecular weights of chitosan. They postulated that metal ions induced the decomposition of H₂ 0₂, which caused the degradation. Nonetheless, the capacity of chitosan to form complexes with metallic ions has made ionic-metal-driven oxidative systems less desirable; especially when it comes to biomedical application [18]. On the other hand, when H₂ 0₂ is used alone, oxidative degradation is an inefficient method to obtain a monodisperse nanoparticle system. To improve the efficiency, we propose a triple-method treatment of oxidative degradation, ultrasonication and ionic gelation.

The use of ultrasonication in nanotechnology has been ubiquitous in recent years. Nevertheless, its effects on CS nanoparticles are not well understood, in spite of a plethora of research works that are devoted to ultrasound-assisted techniques in CS nanoparticle preparation. Also, the ionic gelation method has been separately used to prepare CS nanoparticles. Bodmeier et al. [19], was the first to report the ionic gelation of chitosan using sodium tripolyphosphate (TPP), while Alonso et al. [20] developed chitosan nanoparticles by adding a solution containing TPP into an acidic phase (pH 4-6) containing CS. The study of Wu et al. [21], showed that the formation of nanoparticles is possible only within specific, moderate concentrations of chitosan and TPP. Furthermore, the chitosan/TPP weight ratio should be within the range of 4:1-6:1 in order to obtain a high yield of nanoparticles [22]. The study of Tsai et al. [23], showed that the particle size of chitosan nanoparticles prepared by the ionic gelation method can be influenced by using different mechanical energies such as ultrasonic radiation or mechanical shearing, different treatment times, different chitosan concentrations, and different solution temperatures.

Despite a relatively large work that has been conducted in this area, a series of deficiencies still prevail. For example, the feasibility of producing LWCS by using hydrogen peroxide has been overlooked due to the additional procedures that it requires. Moreover, the use of parallel techniques to reach the optimum system is terms of parameters such as mean average size, Zeta potential, and uniformity has been minimal. Taking the antecedents into account, the aim of the present study is to prepare low molecular weight, water-soluble chitosan nanoparticles by means of a unique combined treatment of oxidative degradation, ultrasonication and ionic gelation. Specifically, achieving an extremely narrow size distribution is one of the priorities of the current research, since a narrow distribution is vital in drug delivery to ensure identical biological response by each particle.

Experimental

Materials

Middle-viscous crab shell chitosan (CS) was purchased from Sigma-Aldrich (United States, cat. no. 28191). Hydrochloric acid fuming 37% (HCl), acetic acid (glacial) 100%, (AA), sodium chloride (NaCl), and hydrogen peroxide 30% (H2O2) were purchased from Merck, Germany. Sodium tripolyphosphate (TPP) was purchased from Sigma-Aldrich, Germany, and sodium hydroxide (NaOH) was purchased from Chem-Lab, Belgium. Human umbilical vein endothelial cells (HUVECs) were kindly provided by the National Cell Bank of Iran. Cells were cultured by standard protocols. A combination of Dulbecco’s modified Eagle’s medium (DMEM, Gibco, USA), Ham’s F12 (Gibco, USA) with 10% fetal bovine serum (FBS, Gibco, USA) were used as culture medium and cells were incubated in 37 °C, 90% humidity in air plus 5% CO2.

Chitosan degradation and ultrasonication

Chitosan solution (2%) was prepared in 0.1 M HCl by stirring for 24 h in room temperature. A solution of H2O2 30% (4.4%) was then used to achieve chemical degradation of chitosan in 30 for 1.5 h. Adjusting the pH of the solution to approximately 7 was carried out by using 1 M NaOH solution. As the pH increased, part of chitosan was precipitated. Hence, the solution was centrifuged at 6000 rpm for 30 minutes to separate sediments. The upper phase of the centrifuged solution included water-soluble chitosan (WSCS), which was soluble in neutral pH, and the lower phase consisted of low molecular weight chitosan (LWCS).

Then, WSCS was vacuum filtered with the aid of appropriate filter paper, while the LWCS was submitted to ultrasonic irradiation with an amplitude of 100 Hz for 20 minutes in order to break the chains further.

Ionic gelation

Ionic gelation was carried out for both LWCS and WSCS. The pH of the solution was adjusted to approximately 5 by the addition of acetic acid. Then, the TPP solution was added to the chitosan solution drop wise until the resulting mixture became opaque. For separating nanoparticles from microparticles, the solution was centrifuged at 6000 rpm for 30 minutes again. The upper phase was filtered by means of syringe filters with two different mesh sizes (450 nm and 220 nm). The filtered solution was freeze-dried for 72 hours to be used for further uses. The prepared samples were named indicating the type of nanoparticles and the used mesh size, as WSCS-450 or LWCS-220 stand for water-soluble nanoparticles that were filtered by a 450 nm mesh size, and low molecular weight CS nanoparticles that were filtered by a 220 nm mesh size and were submitted to ultrasonic irradiation, respectively.

Characterization

Chitosan nanoparticles were characterized by a Bruker EQUINOX 55 infrared spectrophotometer (FTIR). The spectra were acquired with a signal resolution of 2 cm−1 within the 4000–400 cm−1 range. The number of scans was set at 20 for each sample. The Intrinsic viscosity and molecular weight of chitosan were measured with a Cannon-Ubbelohde Viscometer Size 2C, based on the viscometric constants in the Mark–Houwink equation [24].

[𝜂]=k Mvα (1)

Where [𝜂] is the intrinsic viscosity and Mv is viscosity molecular weight of polymer. In order to calculate the Mv, k and α are assumed to be constant (1.81×10-3 mL/g and 0.93, respectively) in a solvent system of 0.1 M CH3COOH/0.2 M NaCl at 25℃ [25]. An AIS2100C scanning electron microscope (SEM) was used to evaluate the surface morphology of nanoparticles. One drop of each chitosan solutions was put to the glass lam, dried at room temperature, gold-coated and prepared for SEM. Transmission electron microscopy (TEM) was performed to monitor the shape and structure of water-soluble nanoparticles more accurately. The samples were immobilized on copper grids and dried at room temperature before testing by a Philips EM400 electron microscope. The mean size, size distribution and zeta potential of each nanoparticle suspensions were analyzed using dynamic light scattering (DLS) and zeta potential analyzing, with a Brookhaven ZetaPlus device. The cytotoxicity of the synthesized CS nanoparticles was examined by a Cell Counting Kit-8 (CCK-8) assay. Human umbilical valve endothelial cells (HUVEC) at a density of 3 × 104 cells per well were seeded into 96-well culture plates, in a 100 µl FBS culture medium for 48 h. The medium was removed and replenished with fresh media containing HUVECs, which were incubated with various concentrations of autoclaved CS nanoparticles (5-100 µg/ml). After 24 h, the CS nanoparticles were removed, the cells were washed and were further assessed for viability using a CCK-8 assay. CCK-solution (10 µl) was added to each well, followed by incubation for 3h at 37 °C. The absorbance at a wavelength of 450 nm was measured by a microplate reader (SpectraMax® M5, USA). Three independent experiments of each sample were carried out and the mean ± SD values were reported. The cell viability was expressed by comparison with the control well, which contained only the cells. The cytotoxicity was further evaluated by a “Live/Dead” cell viability assay containing typical amounts of Calcein-AM (5 µL) and ethidium homodimer-1 (20 µL). A fluorescence microscope (Olympus, Melville, NY) was then used to detect live (green) and dead (red) cells. In terms of other instrumentations, a Hettich® EBA 20 centrifuge was used for separation purposes, a Hielscher UP100H ultrasonic processor was used to break CS chains, a Metrohm device was employed to measure pH, and an OPERON device was used as freeze dryer.

Results and Discussion

Table 1 shows the intrinsic viscosity and molecular weight of CS and its different nanoparticle samples. As shown by the results, the molecular weight of WSCS system was decreased by 97.8% compared to the pure CS, while LWCS experienced an analogous degree of Mv reduction in the order of 98.1%. This indicates that the decrease of chitosan polysaccharide chain length occurred successfully. Interestingly, the ultrasonication process did not reduce the molecular weight further, as indicated by the higher Mv of LWCS compared to WSCS.

1.

   Table Options

   • View in workspace




   Table 1:

   Intrinsic viscosity and molecular weight of CS, WSCS-450, LWCS-450.



   ×

   Table 1: Intrinsic viscosity and molecular weight of CS, WSCS-450, LWCS-450.
   Sample	Intrinsic viscosity, [η]	Molecular weight, Mv kDa)	Zeta potential (mV)
   CS	553.98	792	–
   WSCS-450	13.85	15	35.77
   LWCS-450	15.56	17	31.14

   Close

The FTIR spectra of CS and chitosan nanoparticles (LWCS-450 and WSCS-450) are illustrated in Figure 1. The characteristic band associated with the combined peaks of the NH₂ and OH group stretching vibration in original chitosan is seen at 3435 cm^-1. The peaks of the CS that appear at, 1647, 1379, and 1080 cm^-1 are attributed to the carbonyl, methyl, and C–O stretching vibrations, respectively [11]. It was particularly important to detect the 1647 cm^-1 band, which showed that the carbonyl group is formed during the degradation of chitosan. Vibrations in the range of 1154–896 cm^-1 are assigned to the characteristics of chitosan’s polysaccharide structure [11]. In comparison with the spectrum of CS, those of LWCS and WSCS revealed almost all of the characteristic vibrations of the original chitosan, indicating that the chemical structure of chitosan was not changed. A few changes about the intensity and wavenumber of a given peak might be due to the destruction of the intramolecular and intermolecular hydrogen bonds and the decrease in the degree of crystallinity in the polymer [11]. Specifically, an additional weak peak in the spectrum at 1250 cm^-1 is observed for LWCS-450, which can be assigned to the –P=O stretching vibration indicating the presence of phosphate group in the prepared particles. This can verify that the cross-linking took place through the ionic interaction between the negatively charged –P–O− moieties of the phosphate group and protonated NH₃⁺ moieties of the chitosan molecule [26]. Furthermore, the 1567 cm^-1 peak of the stretching vibration of amino groups of chitosan is sharper (in LWCS) than the peak at 1647 cm^-1 (in CS), showing the high degree of deacetylation of the low molecular weight chitosan nanoparticles. Likewise, a shift from 3445 to 3435 cm^-1 is shown, and the peak is sharper in the LWCS nanoparticles, which shows that the hydrogen bonding is enhanced. These minimal changes substantiate that the main chemical structure of nanoparticles is sustained.

1.

   Figure Options

   • View in workspace

   Figure 1:

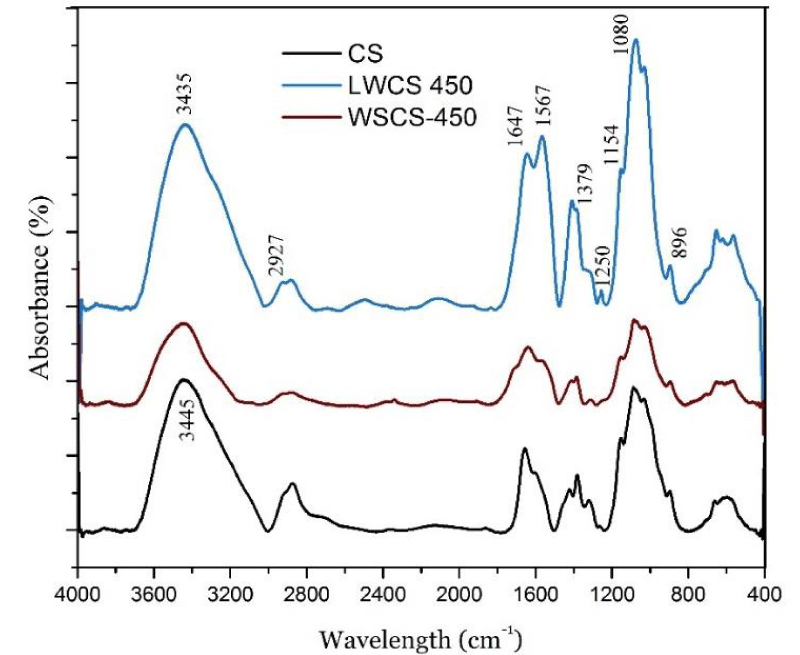

   FTIR spectra of CS, LWCS-450 and WSCS-450.




To analyze the effect of combined treatments of CS on the formation of chitosan nanoparticles, the variations in size, size distribution, and Zeta potential were examined using DLS. The size distribution of different nanoparticle systems, as well as the corresponding PDI values are shown in Figure 2a-d. The WSCS-220 sample showed a bimodal nanoparticle size distribution with average sizes of 29.4 and 62.0 nm. Nevertheless, the small volume fraction of the bigger particles (24%) and the narrow size distribution (PDI = 0.158) can lead to the conclusion that a relatively uniform system was achieved for the aforementioned sample. By increasing the mesh size, the average size distribution and PDI both increased expectedly. As shown in Figure 2b, the majority of particles had a mean size of 35.4 nm, while three other modes of distribution, with sizes between 29.8-46.1 nm, were observed in the close vicinity of the predominant region. The increase of dispersity value to 0.198 for the WSCS-450 system showed that the particles were fairly heterogenous but in a very limited size range (max size difference of = 16.3 nm).

1.

   Figure Options

   • View in workspace

   Figure 2:

   Dynamic light scattering results of (a) WSCS-220, (b) WSCS-450, (c) LWCS-220, and (d) LWCS-450 nanoparticles showing mean size distributions and PDI values.




For the LWCS samples, the only change in preparation procedure compared to WSCS was the addition of an ultrasonication step right before ionic gelation. Hence, Figure 2c,d, reveal the effect of ultrasonic irradiation on the size distribution of CS nanoparticles. As can be seen, for both LWCS-220 and LWCS-450 samples, carefully-controlled monodisperse nanoparticle systems were obtained. LWCS-220 had a single peak for 44.0-nm-sized particles with an extremely narrow size distribution of 0.126. Likewise, LWCS-450 exhibited a unimodal particle size distribution with an average size of 45.7 nm, and a PDI value of 0.149. Comparison of WSCS samples with their LWCS counterparts suggests that ultrasonication had a minimal (if any) effect on reducing the mean average sizes of major modes. Instead, it remarkably contributed to the uniformity of nanoparticles by breaking down the particles in minor modes. This phenomenon can be ascribed to a widely-popular idea that ultrasonication causes main chain scissions at the 1,4-glycosidic bond without affecting the degree of deacetylation of chitosan samples [27].

From Table 1, it can be seen that the Zeta potential for both systems were between 30-36 mV. This suggests that the electrostatic repulsion between neighboring particles were intense enough to yield a stable solution. Achieving stable, positively-charged CS nanoparticles is particularly important in drug delivery applications and cell-polymer interactions, where the cell membrane is often negatively charged [28].

The SEM micrographs of CS nanoparticles derived from corresponding thick solutions (LWCS, and WSCS) are shown in Figure 3a,b. Due to the high concentration and high viscosity of solutions, particles agglomerated and a unique “flowerlike” cluster of particles (marked in the Figure by arrows) became the predominant feature of the graphs. However, when the solutions were diluted by distilled water, the nanostructure of particles became evident. Partial polydispersity of CS nanoparticles is visible in Figure 4a,b for the WSCS system, with bigger particles appearing in the form of white bright objects, while smaller, uniform nanoparticles created a coarse structure, which is characteristic of surfaces containing nanoparticles [29]. Figure 5 shows a typical TEM image of the WSCS-450 sample. The nanoparticles had a spherical shape, smooth surface, and nanoparticle sizes of 30-50 nm, which was in a good accordance with the results obtained by light scattering technique. Figure 4c,d displayed the monodisperse quality of CS particles that were treated with ultrasonication (LWCS). This implied that ultrasonication had a clear influence on the homogeneity of particle distribution.

1.

   Figure Options

   • View in workspace

   Figure 3:

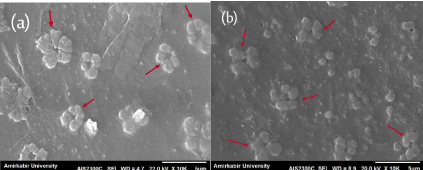

   SEM images (a) WSCS (b) LWCS derived from their corresponding “thick” solutions.




1.

   Figure Options

   • View in workspace

   Figure 4:

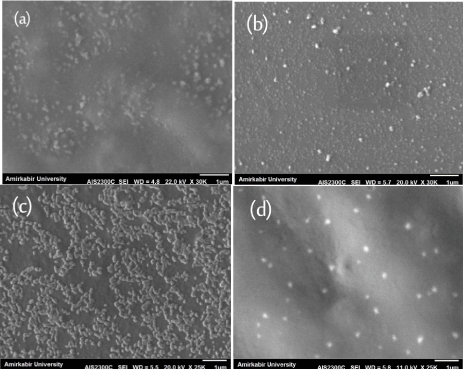

   SEM images of diluted solutions containing CS nanoparticles: (a) WSCS-450 (b) WSCS-220 (c) LWCS-450 (d) LWCS-220.




Cytotoxicity of the CS nanoparticles was evaluated using CCK-8. The fundament of CCK-8 assay is the conversion of a water-soluble tetrazolium salt, 2-(2-methoxy-4-nitrophenyl)-3-(4-nitrophenyl)-5-(2,4-disulfophenyl)-2H-tetrazolium, monosodium salt (WST-8), to a water-soluble formazan dye upon reduction by dehydrogenases in the presence of an electron carrier [30]. Figure 6a shows the percentage of viable human umbilical valve endothelial cells as a function of the CS concentration (WSCS-220). Overall, the toxic effect of CS nanoparticles was moderate (CV > 90%) at concentrations of up to 50 µg/ml. However, the percentage of viable cells reduced to 84% when the concentration of CS nanoparticles was 100 µg/ml. This is in accordance with the general trend observed for chitosan solutions, which indicates that toxicity is mostly dose-dependent [31,32]. The manifestation of dose-dependent behavior emphasizes a basic principle of toxicology first expressed by Paracelsus, saying that “The dose makes the poison”. The cytotoxic effect of CS on cells followed an analogous pattern for LWCS-220 solution (Figure 6b). However, it can be observed that cell viability was slightly higher in comparison to WSCS-200 sample for all CS concentrations. Interestingly, ultrasonic-assisted CS nanoparticles (LWCS-220) further facilitated cell proliferation at concentration of 5 µg/ml, indicating the good biocompatibility of CS nanoparticles in low dosages for use as drug carriers. Figure 6c shows the fluorescent imaging of the Live/Dead cell assay. The dose-dependent reduction of live cells, which was previously observed by the CCK-8 assay is clearly seen in the micrographs. At 5 µg/ml, no to minimal cytoxicity was observed on endothelial cells, as indicated by the uniformity of alive (green) cells. Nevertheless, sporadic dead (red) cells appeared as the concentration of CS increased. The most intense region of dead cells was observed for the WSCS-220 sample at 100 µg/ml, which is in agreement with the results obtained earlier. Overall, the new route to synthesize monodisperse CS nanoparticles can be considered a promising means for the future of drug delivery realm.

1.

   Figure Options

   • View in workspace

   Figure 5:

   TEM image of the WSCS-450 sample.




1.

   Figure Options

   • View in workspace

   Figure 6:

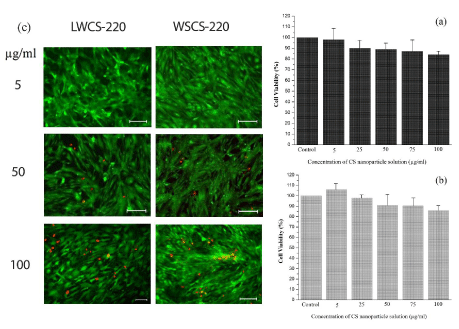

   In vitro cytotoxicity assessments of viability of HUVEC cell line (a) CCK-8 assay evaluation of cells incubated with WSCS-220 solution (b) CCK-8 assay evaluation of cells incubated with LWCS-220 solution, and (c) results of the Live/Dead cell assay and the subsequent fluorescent imaging at various CS concentrations.




Conclusion

In order to address the insolubility of chitosan (CS) in water, chitosan nanoparticles are prepared using a unique combination of H2O2-assisted degradation, ultrasonication (LWCS samples only), and ionic gelation. Molecular weight of chitosan is decreased approximately 100% during the process. From the spectral information (FTIR) it is concluded that the cross-linking between CS and TPP takes place, while the main structure of chitosan is unaltered. The DLS results show that WSCS nanoparticles have a multimodal size distribution pattern, although the range of different size modes is very small (16-32 nm). On the other hand, LWCS yields monodisperse particle distribution with an average size of ~45 nm, which is directly attributed to the role of ultrasonication process. According to SEM images, the particles agglomerate when thick solutions are used. Upon dilution by distilled water, however, nanoparticles can be seen. In vitro cytotoxicity assessments verified the biocompatibility of CS solutions for human umbilical valve endothelial cells up to 50 µg/ml concentration. Overall, nanoparticles with identical, spherical geometries, aqueous solubility, the size distribution as small as 0.126, and the mean positive surface charge of 33 mV can be considered a perfect candidate for drug release and pharmacokinetics applications.

Acknowledgments

This work was partially supported by the Iran Nanotechnology Initiative Council (INIC). We would also like to thank Professor. Hamid Mirzadeh for his consultants.
