*I _{e(EXP)}* was 206.96 x10

The procedures for the design of reinforced concrete structures are based on concepts of limit states. The limit states are generally classified as ultimate limit states and serviceability limit states. The major serviceability limit states for reinforced concrete structures are caused by excessive crack widths, excessive deflections, and undesirable vibrations [1].

In practice, deflection is not normally estimated, rather deflection criterion satisfaction is based on the deemed-to-fit provision of the codes [2]. It has been noticed that buildings that were satisfactory in the deflection criterion of the service limit state, based on the deemed-to-fit provision, were known to have large cracks on the partition walls due to excessive deflections of slabs and beams [3]. The well-known equations for determining the deflection of RC members rely on computing the fractured section’s effective moment of inertia. Branson’s equation was approved by ACI-318, and it appeared in the 1971 publishing edition as a major equation for determining the effective moment of inertia in RC beam deflection calculations [4]. Since then, several arguments have been raised concerning this equation for various reasons, but most of them have centred on the model’s correctness. Designers argued that computing the troublesome cracked moment of inertia *I _{cr}* is difficult and time-consuming, especially for flanged parts. Researchers discovered that adopting Branson’s methodology resulted in a 100 percent inaccuracy in several circumstances. These reasons prompted the researchers to investigate the validity of Branson’s equation for such systems [4]. Many studies have changed this equation to make it more suitable for concrete beams with steel/FRP reinforcement [5-12].

The models for the determination of the effective moment of inertia and deflection of reinforced concrete beams from literature are the models derived from experiments conducted on beams cast using local materials of the various countries respectively. Therefore, there is a need to carry out research to determine the effectiveness of these models on reinforced concrete beams produced using our local materials in the country. The effective moment of inertia model derived from experiments carried out on beams produced from locally available materials will be able to predict deflection more accurately when compared with that from the literature.

The materials and methods used for this work are discussed below.

Ordinary Portland Cement (OPC) of Dangote brand of grade 42.5 was used in this research as a binder according to ASTM C150/C150M-12 [13]. The cement was purchased in Akure metropolis of Ondo State, Nigeria. The coarse aggregate was purchased from JCC Quarry, along Akure- Owo road, it conforms to AASHTO M80-87 [14]. Also, the fine aggregate was collected from a borrowed pit from Akure metropolis, and conforms to AASHTO M6-93 [15], while fresh and clean water was used for casting and curing of the specimens. The water/cement (WC) ratio used for the experimental work was 0.6. The reinforcements used for the work were high-yield steel of 8 mm and 10 mm, with characteristic strengths of 550 N/mm^{2} and 572 N/mm^{2} respectively.

The experimental beam was cast using the mix ratio from the trial mixes that produced concrete strength of not more than 10% lesser or greater than the targeted concrete strength.

The specimen used for this work was a rectangular beam of dimensions 100 x 150 x 750mm. The beam was without compression reinforcement but with only tension reinforcement. The total length of each beam was 750 mm and was tested under one-point loading with a 550 mm effective span.

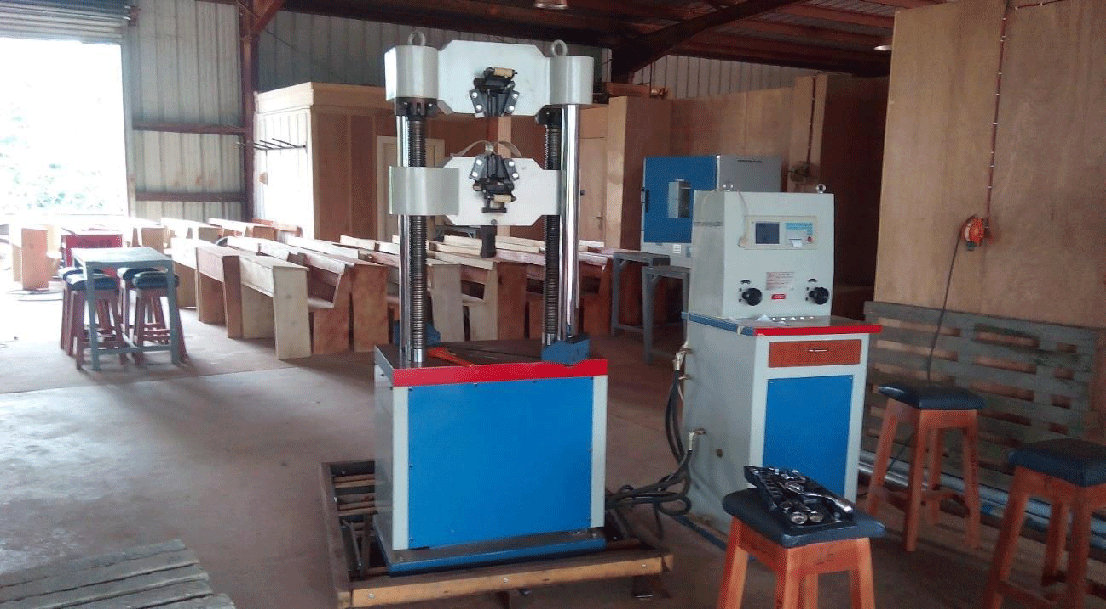

The equipment used for the testing of the concrete cubes and the experimental beam is the universal testing machine (UTM), shown in Figure 1.

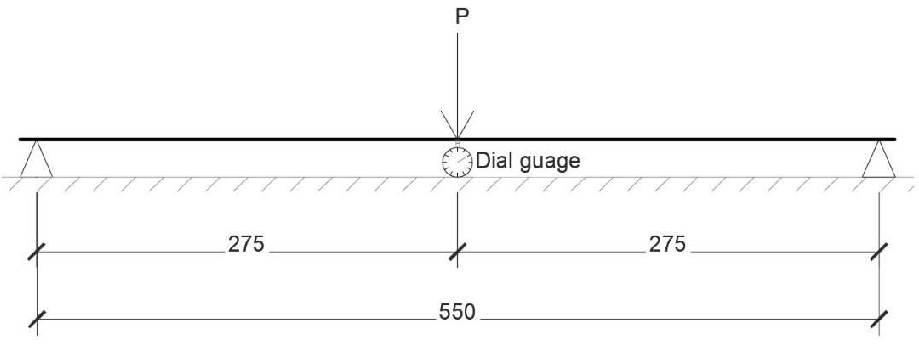

The experimental beam was simply supported, and loaded with a point load at the centre. To measure the deflection, a dial gauge was placed at the centre. The beam was loaded until failure occurs. To measure the deflection, the universal testing machine was started and stopped every 5 seconds and, read the load and the displacement from the UTM and the dial-gauge respectively. Hence, at every 5 seconds, the UTM will be stopped, then the load will be read from the machine, while the deflection will be read from the dial gauge. The stopping to take readings and starting at every 5 seconds continued until failure occurs. Figure 2 shows the schematic diagram of the beam.

The deflection of the beam was measured using a dial gauge. The loading using the UTM was stopped every 5 seconds to read off the load with the corresponding deflection. The actual deflections obtained from the experimental work are presented in column 4 of Table 1.

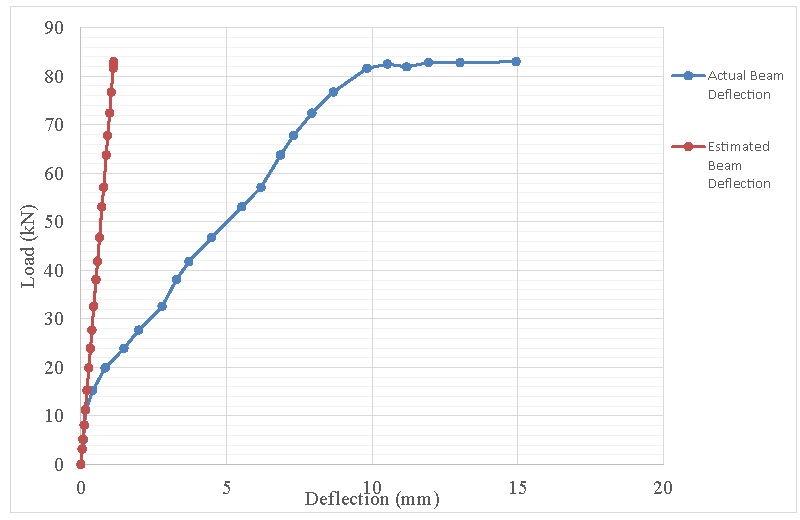

The data in Table 1 were used to plot the graph of Figure 3, from where the values of loads and deflections in between the recorded values of 5, 10, 15, 20, and 25 seconds of starting and stoppage of the loading were taken. These values taken are presented in columns 3 and 4 of Table 2.

**Beams specifications and strength characteristics:** The dimensions of the beam used for the work were: 100 x 150 x 750; *f _{cu}* = 11.1N/mm

Concrete’s strength characteristics such as Young’s Modulus (E_{c}), Moment of Resistance (M_{R}), Estimated Ultimate Load (P_{EULT}), Estimated Maximum Moment (M_{Emax}), and Actual Maximum Moment (M_{Amax}) are determined below.

E_{c} can be estimated from (1):

${E}_{c}=4,725.64\sqrt{{f}_{c}^{1}}\left(Nm{m}^{2}\right)\text{(1)}$

Where ${f}_{c}^{1}$ is the characteristic strength of the concrete.

$Ec=4,725.64\sqrt{11.1}=\text{15}.\text{7x1}{0}^{\text{3}}N/m{m}^{2}$

The moment of resistance M* _{ERB}* can be estimated by Eq. (2)

${M}_{ERB}=0.87{\text{f}}_{\text{y}}{\text{A}}_{\text{s}}*Z\text{(2)}$

Substitute for the values of A_{s}, f_{y}, and Z, where Z= d – s/2 = 127 – 127/2 = 63.5 mm in Eq. (2)

${M}_{ERB}=0.87{\text{f}}_{\text{y}}{\text{A}}_{\text{s}}*Z=0.87x1000x157.1x63.5x{10}^{-6}$

${M}_{ERB}=8.68kNm$

Since the beam is simply supported, the maximum bending moment at the centre is M = PL/4.

The estimated ultimate load for the beam can be determined thus:

${P}_{EULT}=\frac{4{M}_{ERB}}{L}=\frac{4x8.68}{0.55}=63.13kN$

Estimated service load *P _{ESLT}* = 63.13/1.5 = 42.09 kN.

From Table 2, the actual ultimate load P* _{AULT}* = 83 kN

Actual service load *P _{ASLT}* = 83/1.5 = 55.33 kN.

The actual maximum bending moment:

${M}_{AMAX}=\frac{PL}{4}=\frac{83x0.550}{4}=\frac{45.65}{4}=11.41kNm$

The actual bending moment at service:

${M}_{ASMAX}=\frac{PL}{4}=\frac{55.33x0.550}{4}=\frac{\mathrm{30.431.5}}{4}=7.6kNm$

The estimated maximum bending moment:

${M}_{EMAX}=\frac{PL}{4}=\frac{63.13x0.550}{4}=\frac{34.72}{4}=8.68kNm$

The estimated bending moment at service:

${M}_{EMAX}=\frac{PL}{4}=\frac{63.13x0.550}{4}=\frac{34.72}{4}=8.68kNm$

The volume of beam = 0.75 x 0.15 x 0.1 = 0.01125 m^{3}

Unit weight of reinforced concrete = 24 kN/m^{3}

Dead load of beam = volume x unit weight = 0.01125 x 24 = 0.27 kN

It was built of materials with strength characteristic *f _{cu}* = 11.1 N/mm

**Check if the beam has cracked at service loads:** Compute *I _{g}* for the un-cracked beam section (ignore the effect of the reinforcement for simplicity):

Beam width b_{w} = 100mm

**I. Compute the centroid of the cross-section**

$\overline{y}=\frac{h}{2}=\frac{150}{2}=75mm$

y_{t} = 75mm; y_{b} = 75mm

**II. Compute the moment of inertia, I_{g}**

${I}_{g}=\frac{b{h}^{3}}{12}=\frac{100x{150}^{3}}{12}=2812.5x{10}^{4}\text{mm}4$

**III. Determine the flexural cracking moment from Eq. (3):**

${M}_{cr}=\frac{{f}_{r}{I}_{g}}{{y}_{t}}\text{(3)}$

Where *f _{r}* can be estimated using Eq.(4):

${f}_{r}=0.623{\gamma}_{c}\sqrt{{f}_{c}^{1}}MPa\text{(4)}$

*γ _{c = 1}* for normal concrete and
${f}_{c}^{1}$
is the characteristic strength of concrete. Using Eq. (4):

${f}_{r}=0.623{\gamma}_{c}\sqrt{{f}_{c}^{1}}=0.623x1x\sqrt{11.1}=2.08N/m{m}^{2}$

In the positive moment region, using Eq. (3):

${M}_{cr}=\frac{2.08x2812.5x{10}^{4}}{75}=780,000N.mm=0.78kNm$

The positivie moment at mid-span for a simply supported beam with point load = wl/4

$\text{Deadloadmoment}=\frac{0.27x0.55}{4}=0.037kNm{M}_{cr}=0.78kNm$

*Hence, section not* cracked

$\begin{array}{l}Deadplusliveload{M}_{EDL+LL}=\frac{\left(42.09+0.27\right)x0.55}{4}\\ =5.82kNm{M}_{cr}=0.78kNm\end{array}$

Hence the section has cracked.

Therefore, it will be necessary to compute *I _{cr}* and

Compute *I _{cr}* at midspan. It is known that the beams have rectangular sections

Beam without compression steel

${I}_{cr}=\frac{b{k}^{3}{d}^{3}}{3}+nAs{(d-kd)}^{2}\text{(5)}$

$kd=\frac{\sqrt{2dB+1}-1}{B}\text{(6)}$

Where:

$n=\frac{{E}_{s}}{{E}_{c}}=\frac{200}{15.7}=12.74$

$B=\frac{b}{n{A}_{s}}=\frac{100}{12.74x157.1}=\frac{100}{2001.5}=0.05mm$

From Eq. (6) the value of kd can be determined as shown below for the beam without compression reinforcement:

$kd=\frac{\sqrt{2x127x0.05+1}-1}{0.05}$

$kd=\frac{\sqrt{13.7}-1}{0.05}$

$kd=\frac{3.70-1}{0.05}$

$c=kd=\frac{2.7}{0.05}=54mm$

$k=\frac{54}{127}=0.425$

k=54/127=0.425

The crack moment of inertia can be determined using Eq.(5)

${I}_{cr}=\frac{100x{0.425}^{3}x{127}^{3}}{3}+12.74x157.1{(127-0.425x127)}^{2}$

${I}_{cr}=524.15x{10}^{4}+2001.5{(73.02)}^{2}$

${I}_{cr}=524.15x{10}^{4}+2001.5(5332.92)$

${I}_{cr}=524.15x{10}^{4}+1067.18x{10}^{4}$

${I}_{cr}=1591x{10}^{4}\text{mm}4$

Therefore, *I _{cr}* at mid-span for the beam with only Tension reinforcement = 1591×104mm

[For SI unit, where Es = 200 kN/mm^{2} and Ec = 15.7 kN/mm^{2}]

Compute immediate dead-load deflection: When the load acting on the beam is less than the cracking load (*M _{a}*<

**I. Compute I_{e} at mid-span**

Because *M _{ESMAX}* = 5.79 kNm is greater than

${I}_{e}={\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}{I}_{g}+\left[1-{\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}\right]{I}_{cr}\text{(7)}$

$\begin{array}{l}{M}_{a}=\frac{wl}{4};wherew=unfactoredliveload;\\ {M}_{a}=\frac{42.36x0.55}{4}=5.82kNm\end{array}$

Therefore:

${\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}={\left(\frac{0.78}{5.82}\right)}^{3}={\left(75.91x{10}^{-6}\right)}^{3}=0.002\approx 0$

We have:

$\begin{array}{l}{I}_{e}=0x2812.5x{10}^{4}+\left(1-0\right)x1591x{10}^{4}\\ =1591x{10}^{4}m{m}^{4}={I}_{cr}{I}_{g}\end{array}$

**II. Compute I_{e} at mid-span for the beam with compression reinforcement**

Because *M _{EDL+LL}* = 5.82 kNm is greater than

${I}_{e}={\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}{I}_{g}+\left[1-{\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}\right]{I}_{cr}\text{(7)}$

Therefore:

${\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}={\left(\frac{0.78}{5.82}\right)}^{3}={\left(75.91x{10}^{-6}\right)}^{3}=0.002\approx 0$

We have:

${I}_{e}=0x2812.5x{10}^{4}+\left(1-0\right)x2621.91x{10}^{4}=2621.91x{10}^{4}m{m}^{4}={I}_{cr}{I}_{g}$

**III. Compute estimated immediate dead load deflection:** Since it assumed that the beam behaved like a simply supported beam with a concentrated load at the centre, the mid-span deflection can be estimated using Eq.(8) below.

$\Delta =\frac{w{l}^{3}}{48EI}\text{(8)}$

Eq.(8) is the general equation for the estimation of deflection for beams without compression reinforcement and it can be derived as follows:

Substituting for the values of *E _{c}*, l, and

${\Delta}_{max}=\frac{w{l}^{3}}{48E{I}_{e}}=\frac{wx{550}^{3}}{48x15.7x{10}^{3}x1591x{10}^{4}}=\frac{w{l}^{3}}{48EI}$

${\Delta}_{max}=\frac{w{l}^{3}}{48E{I}_{e}}=\frac{w1.664x{10}^{8}}{1.22x{10}^{13}}$

${\Delta}_{max}=\frac{w{l}^{3}}{48E{I}_{e}}=1.36wx{10}^{-5}mm\text{(9)}$

Using Eq. (9), the estimated mid-span deflection for the beams was determined. The results obtained are presented in column 5 of Table 3.

The estimated deflection is lesser than the actual deflection. The ultimate beam load was 83 kN, and the service load is about 66.66% of the ultimate load and which equals 55.33 kN for the beam. From Figure 3, the corresponding estimated deflection for a service load of 55.33 kN is 0.75 mm, while the corresponding actual deflection is 5.90 mm. From Table 3, column 4, the actual deflection increases as the load increases. Also from Figure 3, the actual load-deflection curve is not linear, and deflection increases as load increases. At the beam’s ultimate load of 83 kN, the deflection curve flattened out and the collapse of the beam took place. Column 5 of Table 3 and Figure 3, shows the estimated deflection, which increases with the load and linear throughout. Column 6 of Table 3 shows how much the actual deflection exceeded the estimated deflection. At the service load of 55.33 kN, the difference between the estimated and actual deflection is 687%. From the above, *I _{e}* used in the computation of the estimated deflection is grossly inaccurate. Since the estimated deflection is lesser than the actual deflection, indicates that

The deflection at mid-span, of the beam and load case is calculated using equation (8) repeated below:

${\Delta}_{max}=\frac{w{l}^{3}}{48E{I}_{e}}$

Taking *E* = *E _{C}*, an experimental effective moment of inertia,

${I}_{e(EXP)}=\frac{w{l}^{3}}{48{E}_{c}{\Delta}_{ACT}}\text{(10)}$

Substituting the values of *l* and *E _{c}* into Eq. (10), we have:

${I}_{e(EXP)}=\frac{w{550}^{3}}{48x15.7x{10}^{3}x{\Delta}_{ACT}}$

${I}_{e(EXP)}=\frac{w1.664x{10}^{8}}{7.54x{10}^{5}x{\Delta}_{ACT}}=220.69\frac{w}{{\Delta}_{ACT}}\text{(11)}$

Using Eq. 11, *I _{e(exp)}* is determined and presented in Column 4 of Table 4.

At a service load of 55.33 kN and actual deflection of 5.90 mm, the experimental effective moment of inertia, *I _{e(exp)}* = 206.96 x10

The main aim of this work is to develop a model that will be able to predict the deflection of beams produced from locally available materials more accurately than the ones from the literature.

The proposed model is based on Olanitori’s model [3], which is presented here as Equation (12).

${I}_{e}={\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}{I}_{g}+\left[1-{\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}\right]\alpha {I}_{cr}\text{(12)}$

Where α the experimentally determined reduction is a factor, and equals 0.24.

In the proposed model α is replaced with β. Thus the model is in the form of Equation (13).

${I}_{e}={\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}{I}_{g}+\left[1-{\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}\right]\beta {I}_{cr}\text{(13)}$

Where:

β: Experimentally determined reduction factor

$206.96x{10}^{4}={\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}{I}_{g}+\left[1-{\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}\right]\beta {I}_{cr}$

Where β is the reduction factor for the effective moment of inertia *I _{e}*.

Therefore:

${\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{3}={\left(\frac{0.78x{10}^{3}}{5.8x{10}^{3}}\right)}^{3}=2.43x{10}^{-3}\approx 0$

Since we are interested in the deflection at the service load, then, *I _{e(EXP)}* = 206.96 x10

We have a crack moment of inertia *I _{cr}* to be:

${I}_{\text{cr}}{=}_{}\text{1591}\times \text{1}{0}^{\text{4}}{\text{mm}}^{\text{4}}$

$206.96x{10}^{4}=0x2812.5x{10}^{4}+\left(1-0\right)x1591x{10}^{4}\beta $

$206.96x{10}^{4}=0+1591x{10}^{4}\beta $

Therefore

$\beta =\frac{206.96x{10}^{4}}{1591*{10}^{4}}=0.130$

${\Delta}_{pmax}=\frac{w{l}^{3}}{48{E}_{c}\beta {I}_{e}}=\frac{wx{550}^{3}}{48x15.7x{10}^{3}x0.130x2812x{10}^{4}}$

${\Delta}_{pmax}=\frac{wx{550}^{3}}{48x15.7x{10}^{3}x0.130x2812x{10}^{4}}=0.00006wmm\text{(14)}$

Model 1: Akmaluddin and Thomas Model [16]

${I}_{e}={I}_{cre}+\left({I}_{g}-{I}_{cre}\right){e}^{\varnothing}\text{(15)}$

Where:

$\begin{array}{l}{I}_{cre}=\left(0.1618+0.0418n\rho \right)\frac{b{h}^{3}}{12}=\\ \left(0.1618+0.0418x12.74x0.0124\right)\frac{100x{150}^{3}}{12}\end{array}$

${I}_{cre}=\left(0.1618+0.0066\right)x2812.5x{10}^{4}=473.62x{10}^{4}$

$\varnothing =-\left(\frac{{M}_{a}}{{M}_{cr}}\right)\left(\frac{{L}_{cr}}{L}\right)\left(8.474-9.0607\rho +2.842{\rho}^{2}\right)$

${L}_{cr}=L\left(1-\frac{{M}_{cr}}{{M}_{a}}\right)$

${L}_{cr}=550\left(1-\frac{0.78x{10}^{3}}{5.8x{10}^{3}}\right)=476.04mm$

$\begin{array}{l}\varnothing =-\left(\frac{5.8x{10}^{3}}{0.78x{10}^{3}}\right)\left(\frac{476.04}{550}\right)\\ \left(8.474-9.0607x0.0124+2.842x{0.0124}^{2}\right)\end{array}$

$\varnothing =-6.440\left(8.474-0.1124+0.00044\right)=-53.85$

$\begin{array}{l}{I}_{e}={I}_{cre}+\left({I}_{g}-{I}_{cre}\right){e}^{\varnothing}=\\ 473.62x{10}^{4}+\left(2812.5x{10}^{4}-473.62x{10}^{4}\right){e}^{-53.85}\end{array}$

$\begin{array}{l}{I}_{e}=473.62x{10}^{4}+\left(2338.9x{10}^{4}\right){e}^{-53.8}\\ =473.62x{10}^{4}+9.60x{10}^{-17}\end{array}$

${I}_{e}=473.62x{10}^{4}m{m}^{4}$

$\begin{array}{l}{\Delta}_{1max}=\frac{w{l}^{3}}{48{E}_{c}{I}_{e}}=\frac{wx{550}^{3}}{48x15.7x{10}^{3}x473.62x{10}^{4}}\text{(16)}\\ =0.000047wmm\end{array}$

**Model 2:** Ammash and Muhaisin Model [7]

${I}_{e}={\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{\left(\epsilon +\gamma \right)}*{I}_{g}+\left[\left(\left(\epsilon +\gamma \right)-{\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{\left(\epsilon +\gamma \right)}\right)\right]{I}_{cr}*\left(\epsilon +\beta \right)\text{(17)}$

Where:

$\begin{array}{l}\beta =\frac{{\rho}^{1}}{\rho};\gamma ={f}_{l}-\frac{\left({\rho}^{1}+\alpha \rho \right)n}{\mu};\\ \alpha =5.26-0.525\left(\frac{d}{{b}_{w}}\right);\mu =\frac{{I}_{g}}{{I}_{cr}};\epsilon =\frac{H}{L}\end{array}$

*f _{l}* – factor depending on loading type such as:

Distributed load =1.25; 2. Two-point load =1.0 and 3. Concentrated load =0.75

$\begin{array}{l}\alpha =5.26-0.525\left(\frac{127}{100}\right)=6.01;\\ \mu =\frac{{I}_{g}}{{I}_{cr}}=\frac{2812.5x{10}^{4}}{1591x{10}^{4}}=1.77\end{array}$

$\rho =\frac{{A}_{s}}{bd}=\frac{157.1}{100x127}=0.0124$

ρ^{1} is the reinforcement ration at the compression area

ρ is the reinforcement ration at the tension area

ρ^1/ρ=0.0124/0.0124=1; ε=H/L=150/550=0.27

$\begin{array}{l}\gamma ={f}_{l}-\frac{\left({\rho}^{1}+\alpha \rho \right)n}{\mu}=0.75-\\ \frac{\left(0.0124+6.01x0.0124\right)12.74}{1.77}=0.12\end{array}$

$\begin{array}{l}{I}_{e}={\left(\frac{0.78x{10}^{3}}{5.8x{10}^{3}}\right)}^{\left(0.27+0.12\right)}x2812.5x{10}^{4}+\\ \left[\left((0.27+0.12)-{\left(\frac{0.78x{10}^{3}}{5.8x{10}^{3}}\right)}^{\left(0.27+0.12\right)}\right)\right]1591x{10}^{4}x\left(0.27+1\right)\end{array}$

$\begin{array}{l}{I}_{e}={0.0135}^{0.39}x2812.5x{10}^{4}+\\ \left[\left(0.39\right)-{0.0135}^{0.39}\right]1591x{10}^{4}x1.27\end{array}$

$\begin{array}{l}{I}_{e}=1.87x{10}^{-1}x2812.5x{10}^{4}\\ +\left[\left(0.39\right)-0.187\right]1591x{10}^{4}x1.27\end{array}$

${I}_{e}=525.94x{10}^{4}+\left[0.203\right]1591x{10}^{4}x1.27=936.12x{10}^{4}$

$\begin{array}{l}{\Delta}_{2max}=\frac{w{l}^{3}}{48{E}_{c}{I}_{e}}=\frac{wx{550}^{3}}{48x15.7x{10}^{3}x936.12x{10}^{4}}\text{(18)}\\ =0.000024wmm\text{}\end{array}$

**Model 3:** Bischoff’s Model [12]

$\frac{1}{{l}_{e}}={\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{m}\frac{1}{{I}_{g}}+\left[1-{\left(\frac{{M}_{cr}}{{M}_{a}}\right)}^{m}\right]\frac{1}{{I}_{cr}}\text{(19)}$

Substituting for the values of *I _{g}* = 2812×10

$\frac{1}{{l}_{e}}={\left(\frac{0.78x{10}^{3}}{5.8x{10}^{3}}\right)}^{2}x\frac{1}{2812.5x{10}^{4}}+\left[1-{\left(\frac{0.78x{10}^{3}}{5.8x{10}^{3}}\right)}^{2}\right]x\frac{1}{1591x{10}^{4}}$

$\frac{1}{{I}_{e}}=0+\left[1-0\right]x\frac{1}{1591x{10}^{4}}=\frac{1}{1591x{10}^{4}}$

${I}_{e}=1591x{10}^{4}mm$

$\begin{array}{l}{\Delta}_{3max}=\frac{w{l}^{3}}{48{E}_{c}{I}_{e}}=\frac{wx{550}^{3}}{48x15.7x{10}^{3}x1591x{10}^{4}}\text{(20)}\\ =0.000014wmm\end{array}$

The proposed model (model P), model 1, model 2, and model 3 were used to estimate the deflection of the beam. The results of the estimation were presented in Table 5. For the beam at a service load of 55.33 kN, the estimated deflections using model P, model 1, model 2, and Model 3 are 3.32 mm, 2.60 mm, 1.33 mm, and 0.78 mm respectively. The percentage differences between these deflections to the actual deflection of 5.09 mm at the service load are 53.31%, 95.77%, 282.71%, and 552.56% respectively.

Based on the analysis and comparison of the different models of estimating deflection, the following conclusions and recommendations were made:

The actual deflection of the experimental beam at service load was 5.90 mm which exceeded the maximum permissible computed deflections (ACI 318, 2005) of L/480, which equals 1.15 mm. Therefore, non-structural elements, such as partition walls, supported by such beams are likely to be damaged by large deflections, and therefore the beam is not satisfactory in deflection. Models P, 1, 2, and 3 grossly underestimated the deflection by 53.31%, 95.77%.282.71%, and 552.56% respectively.

**The recommendations made are as follows:**

- Research should be done on the effect of tension reinforcement sizes on the effective moment of inertia and deflection of reinforced concrete slender beams.
- More research should be conducted on the effect of compression reinforcement on the effective moment of inertia and deflection of reinforced concrete slender beams so that more accurate estimated deflection can be achieved.
- The span/effective depth ratio alone should not be used in checking for deflection, rather this should be complemented by actual deflection calculation.

- Wight JK, MacGregor JG. Reinforced concrete mechanics and design: Fifth Edition. Prentice Hall: Pearson Education International. 2009.
- Nkuma L. Effectiveness of BS 8110 Control Measures on Deflection at Service. 500 L Seminar, Federal University of Technology, Akure, Ondo State, Nigeria. 2013.
- Olanitori LM. Effective Moment of Inertia of Single-Spanned Reinforced Concrete Beams with Fixed Beam-Column Joints. Journal of Civil Engineering and Urbanism. 2019; 9(2): 07-16.
- Ammash HK, Hemzah SA, Al-Ramahee MA. Unified Advanced Model of Effective Moment of Inertia of Reinforced Concrete Members. International Journal of Applied Engineering Research. 2018; 13(1):557-563
- Al-Zaid RZ, Al-Shaikh AH, Abu-Hussein M. Effect of Loading Type on the Effective Moment of Inertia of Reinforced Concrete Beams. ACI Structural Journal. 1991; 88(2): 184-190.
- Fikry AM, Thomas C. Development of a Model for the Effective Moment of Inertia of One-Way Reinforced Concrete Elements. ACI Structural Journal. 1998; 95(4): 444-455.
- Ammash HK, Muhaisin MH. Advanced Model for the Effective Moment of Inertia Taking into Account Shear Deformations Effect. Al-Qadisiyah Journal for Engineering Sciences. 2009; 2(2): 108–28.
- Muhammad Masood R, Nadjai A. Evaluation of ACI 440 Deflection Model for Fiber-Reinforced Polymer Reinforced Concrete Beams and Suggested Modification. ACI Structural Journal. 2009; 106(6): 762-71.
- Hall T, Ghali A. Long-Term Deflection Prediction of Concrete Member Reinforced with Glass Fiber Reinforced Polymer Bars. Can J Civ Eng. 2000; 27:890-898
- Faza SS, GangaRao HVS. Pre-and Post-Cracking Deflection Behaviour of Concrete Beams Reinforced with Fibre-Reinforced Plastic Rebars. In Proceedings of the First International Conference on Advance Composite Materials in Bridges and Structures (ACMBS-I), Canadian Society of Civil Engineers, Sherbrooke, Canada. 1992; 129–37.
- Benmokrane B, Chaallal O, Masmoudi RT. Flexural Response of Concrete Beams Reinforced with FRP Reinforcing Bars. ACI Structural Journal. 1996; 93(1): 46–55.
- Bischoff PH. Re-evaluation of Deflection Prediction for Concrete Beams Reinforced with Steel and Fiber Reinforced Polymer Bars. Journal of Structural Engineering. ASCE. 2005; 131(5): 752-762.
- ASTM C150/C150M-12. Standard specification for portland cement. ASTM International. 2012; i:1–9. https://doi.org/10.1520/C0150
- AASHTO M80-87. Standard Specification for Coarse Aggregates for Portland Cement Concrete. The American Association of State Highway and Transportation. 1999; 60-62.
- AASHTO M6-93. Standard Specification for Fine Aggregate for Portland Cement Concrete. The American Association of State Highway and Transportation. 1997; 1-3.
- BS 8110-1. Structural Use of Concrete – Part 1: Code of Practice for Design and Construction. British Standards Institution, London. 1997.
- Akmaluddin A, Thomas C. Experimental Verification of Effective Moment of Inertia Used in the Calculation of Reinforced Concrete Beam Deflection. in Proceedings of the International Civil Engineering Conference “Towards Sustainable Civil Engineering Practice. Surabaya, Indonesia. 2006.

Subscribe to our articles alerts and stay tuned.

This work is licensed under a Creative Commons Attribution 4.0 International License.

Help ?

**PTZ:** We're glad you're here. Please click "create a new query" if you are a new visitor to our website and need further information from us.

If you are already a member of our network and need to keep track of any developments regarding a question you have already submitted, click "take me to my Query."
